Mazda RX-8 Hi Flow KOYO Radiator 53mm Core for Manual 2004-2008

Koyo

  • £42240 (inc. VAT)
  • Save £23

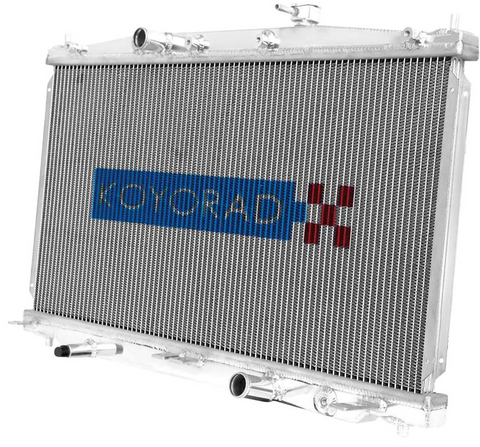

Koyorad Alloy Radiator Mazda RX8 13B-MSP SE3P 53mm Core

Koyo's "R" Series aluminium radiators feature an all-aluminium core brazed to polished aluminium end tanks for a show quality finish. Koyo uses state of the art Nocolok Brazing Furnace to bond all of the radiator brackets, headers, tubes, and fins, creating high quality "indestructible" radiator. All aluminium end tanks are hand crafted using the latest Heliarc Soldering technique for the most reliable connections, then polished to a mirror finish. Over 60 applications are available for Koyo "Racing" series.

All Koyo Racing series radiators have "OE Specification" mounting location for stock mounting without major modifications; however we recommend using aftermarket electric fans for the best results. Koyo Hyper Radiator Caps are also available to increase your cooling system pressure to 1.3 bar for increased cooling capacity. Racing series radiators were made for manual transmission only, however with a separate automatic transmission cooler; one can use the Koyo Racing Radiator with automatics for increased cooling capacity.

Koyorad Alloy Radiator Mazda RX8 13B-MSP SE3P 53mm Core-

Note: Radiator has offset bottom hose connection to improve cooling. An additional fitting kit is available to provide ease of fitting.

Stock images used. Actual product may vary, see drawing for details.


Brand: KOYORAD
Part Number: KL061615V

  • Engineered to tight quality control standards:
  • Heliarc soldering
  • Pristine tube and fin alignment
  • Mirror Polished surface finish
  • Tubes, Fins, Headers, Brackets - brazed in a state-of-the-art Nocolok furnace
  • Nocolok furnace bonds these components into a virtually indestructible unit
  • Fan mounts are situated to OEM specifications (Plug and Play)

When factory equipped radiators have inlet and outlet locations that allow proper placement,  Koyorad carefully welds aluminium partitions in the upper and lower tanks of the radiator.  This is Koyorad’s N-Flo Technology which allows for a double or triple pass radiator. This design cools more efficiently by allowing the coolant to remain in the radiator for a longer period of time therefore transferring more heat to the surrounding air.  N-Flo Technology is available on cars that are known to have limited airflow to the radiator. Unless noted otherwise, all Koyorad N-Flo Aluminium Radiators are Nocolok brazed, designed as a factory fit, direct bolt in with no engine modifications necessary, and retain mounts for the  stock fan shrouds and fans.  See notes in individual item descriptions for details.

n flo Koyo
Specifications:
- Manual transmission cars only

Item Number: KL061615V
Engine: 13B-MSP
Chassis: LA-SE3P
Dimensions (mm): 360* 672* 53
Oem Code: N3H115200C
Core Size (mm): 53

Please Note
A qualified Technician should fit this item, failure to do so will void any guarantees. You should retain your fitting invoice for reference, invoice should indicate the vehicle mileage when fitted. The Performance Shop will not be held responsible for any Failure/Damage/Malfunction or any other loss due to fitting and use.

THESE ARE SPECIAL ORDER ONLY, ONCE ORDER IS PLACE IT CAN NOT BE CANCELLED.

Shipping

Parcel Weight: Medium

Estimated Shipping Rate 05/17Shipping Map

Shipping quoted at checkout is for mainland UK only and includes VAT. For non-mainland and international destinations please email for prices. Please note that postage at checkout only shows the value for the first item selected. To minimise postage costs for multiple items please email for costs. For destinations outside of mainland UK, customs charges, duty and local charges are the responsibility of the purchaser.

Delivery

typically 5-7 working days

Returns Policy

Please see our returns policy Returns Policy
